BRASS STOP VALVE

The brass stop valve is the closed valve moving along the valve seat center line. According to the valve flap, the change of the valve seat opening is directly proportional to the stroke of the valve disc. Because the valve stem opening or closing stroke of this stop valve is relatively short, and has a very reliable cut-off function, and because of the change of the valve seat opening and the stroke of the valve flap is positively proportional relationship, it is very suitable for the flow adjustment. Therefore, this type of valve is ideal for use as a cut or adjustment as well as throttling.

Brass stop valve product features:

1. High-quality copper material adopts red flushing and hot forging process, and the stop valve below DN25 specification adopts two seals.

2. During the opening and closing process of the stop valve, the friction force of the valve flap between the sealing surface of the valve body is smaller than that of the brake valve.

3. The opening height is generally only 1 / 4 of the diameter of the valve seat channel, usually only one sealing surface, good manufacturing process and easy to repair.

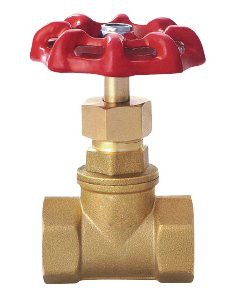

Brass globe valve physical Figure 1 brass angle globe valve physical Figure 1 brass angle globe valve physical Figure 2

Application of brass globe valve products:

Brass stop valve is mainly used for cutting off medium, regulating and throttling. Due to the small stroke between the valve flap and the switch is small, the sealing surface can withstand multiple opening and closing, which is suitable for occasions requiring frequent opening and closing. The operating medium of the stop valve is water, oil, gas, etc. Operating temperature is-10℃ t 120℃, and the nominal pressure is 1.6MPa.

Brass globe valve installation Guide

1. Pipe thread connecting the stop valve, installation should make the pipe and the end of the valve body vertical, and pull the clamp on the same side of the hexagon or octagonal parts, should not be pulled in the other end of the hexagonal or octagonal parts, DN15, DN2O installation torque distance is not more than 50M.m, DN25 installation torque distance shall not be greater than 70N.m, so as not to cause the valve body deformation or affect the opening.

2. During the installation, the sealing materials should be kept clean and clean.

3. The degree circle on the flange stop valve should be matched with the size of the pipe flange in the same. The pipe center of both ends should be perpendicular to the two flange plane of the valve body, otherwise the valve body will be distorted and deformed.

4. When the stop valve connecting the pipe thread is connected with the thread of the pipe end, the internal thread can be conical tube thread or cylindrical pipe thread, but the outer thread must be conical tube thread, otherwise it is easy to lead to a tight connection and leakage

5. During installation, the flow direction of the medium is consistent with the direction of the arrow on the valve body.

6. Hand-wheel-operated stop valves can be installed anywhere in the pipe.

7. The soft sealing stop valve is sealed by PTeflon material, and the hard sealing stop valve is sealed by the same material itself (in metal).

Product Specification

Product Parameter

SIZE: 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4"

Material: Brass

Field of Application: WATER-OIL-GAS

Working pressure: 20-40Bar/200--400 Psi

Connection: Female-Female,

Working Temperature: -20℃ to 120 ℃

Brass material (Hpb57-3) chemical composition

Certificate

Quality Control

Production Room

Assemble line and Packing line

Office Room

Factory Gate And Warehouse Room

Why choose us?

• Our company is a manufacturer and supplier of Brass Gate Valves, offering competitive pricing.
• Our company adheres to the quality as the foundation of the brand, the market as the driving force of the brand and the design as the soul of the brand. We seek development in innovation and breakthrough in the challenge.
• Our Brass Gate Valves are available in a variety of configurations to meet different performance requirements and specifications.
• We focus on the interests of our customers and provide the best Brass Stop Valve products and services with the most reasonable prices.
• Our factory is equipped to produce Brass Gate Valves in large quantities to meet the demands of our customers.
• Our company has established a dynamic alliance with suppliers to realize remote collaborative product development and seize the fast changing market opportunities.
• We understand that each customer has unique requirements, and we offer customized solutions to meet your specific needs.
• We are committed to responding immediately to any needs, suggestions, opinions or complaints from our customers, and to respond and resolve them in the shortest possible time.
• Our Brass Gate Valves are easy to install and maintain, reducing downtime and maintenance costs.
• Our company is based on quality and reputation, customer demand is our goal.
